- Internal Auto-focus
- 5MP / 1080p 60fps HDMI digital microscope camera with C-mount
- Standalone operation with built-in recording using SD card
- WiFi connectivity for PC control and capture up at 25fps
- User-friendly software for Windows XP/Vista/7/8/10 offers editing/processing and advanced features including Stitching and Focus-stacking

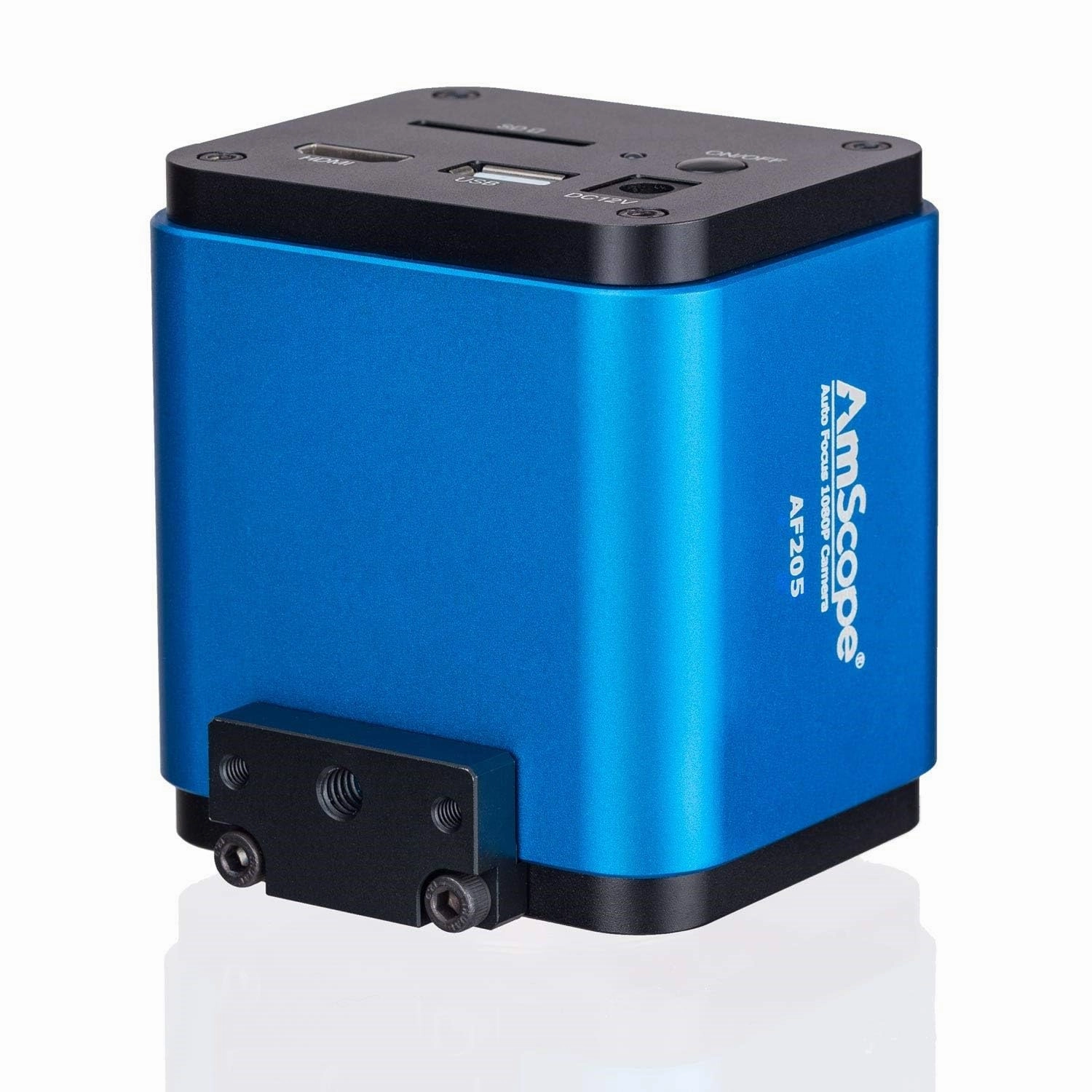

The AF205 adds auto-focus capabilities to our popular line of HD microscope cameras. Based on the same imaging platform as our HD200 series cameras, the AF205 offers 1080p live-viewing over HDMI, and can record 5MP photos and 1080p video directly to Secure Digital media. The internal software provides control over exposure and color, and tools for measurements and comparisons. The addition of auto-focus limits the need to make focus-adjustments when using the camera as the primary means of observation.
Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse allows you to control the camera through its easy-to-use interface. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
The camera uses a C-mount interface, making it compatible with a wide range of reduction lenses and photo-ports. Notice: because of the auto-focus mechanism, C-mount lens threads should not exceed 5mm.
Specifications
Sensor Specifications Model IMX178 (color) Sensor Type CMOS Sensor Optical Format 1/1.8" Active Pixels 5.04M (2592 x 1944) Pixel Size 2.4µm x 2.4µm Active Sensor Area 6.22mm x 4.67mm Shutter electronic rolling shutter Sensitivity 425mV @ 1/30s (f/5.6) Spectral Response 380-650nm with IR-cut filter Other Camera Specifications Video Preview Resolution (HDMI) 1920 x 1080 Video Preview Framerate (HDMI) 60fps Video Capture Resolution 1920 x 1080 Video Capture Framerate 30fps (SecureDigital)25fps (wi-fi) Internal Video Capture Format ASF Photo Capture Resolution 2592 x 1944
1920 x 1080 Internal Photo Capture Format JPG Recording Media SecureDigital card Connectivity HDMI, wi-fi Wi-fi Standard 802.11n 150Mbps Lens-mount C-mount Compensating Lens 0.5X (optional) Power 12VDC 1A Dimensions 78mm x 70mm x 92mm Operating Temperature -10-50°C Operating Humidity 30-80%
Software
OS Requirements Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8 , Linux kernel 3.13 Hardware Requirements Intel Core2 2.8GHz or comparable processor, 4GB RAM Features Windows Version Live video preview Captures still images and video Time-lapse capture Exposure and white-balance controls Dark-field correction Digital binning Image processing Measurement tools, including lines, arcs, polygons Segmentation and counting tools Image-stitching, extended depth-of-field, HDR Fluorescence color-mapping Mac/Linux Versions Live video preview Captures still images and video Exposure control Color adjustment Measurement tools, including lines, arcs, polygonsContents:
- One digital camera
- One USB mouse
- One USB wi-fi dongle
- One HDMI Cable
- One SD card
- One power adapter
- One software CD
- Product Dimensions : 10.04 x 6.69 x 3.54 inches; 3.3 Pounds
- Date First Available : June 21, 2019
- Manufacturer : United Scope, LLC
- Country of Origin : China
