- All-Metal Gearbox. The Gearbox Gear Is Made Of Carbon Steel And Hardened By Quenching;
- The Axle Is Equipped With A Differential Function. The Differential Gear Is Made Of Powder Metallurgy Material With Heat Treatment, And Uses Metal Injection Molding Technology;
- The Steering Component Restores The Design Of The Real Car, Using Rack And Gear;
- The Shock Absorber Is A Needle Valve Shock Absorber, And The Damping Rebound Coefficient Of The Shock Absorber Can Be Manually Adjusted Through The Valve On The Tower Top;
- The Vehicle Is Equipped With A Brake Disc, And The Side Of The Brake Disc Is Equipped With A Vent.
#Specification:
Manufacturer: Capo
Item Condition: New, Assembled And Painted.
Material: Metal, Plastic, Rubber
Color: Light Blue, Purple
Id: Cp-Cd15829-Gtr-R34-Std-Rtr-Painting-Lbupl

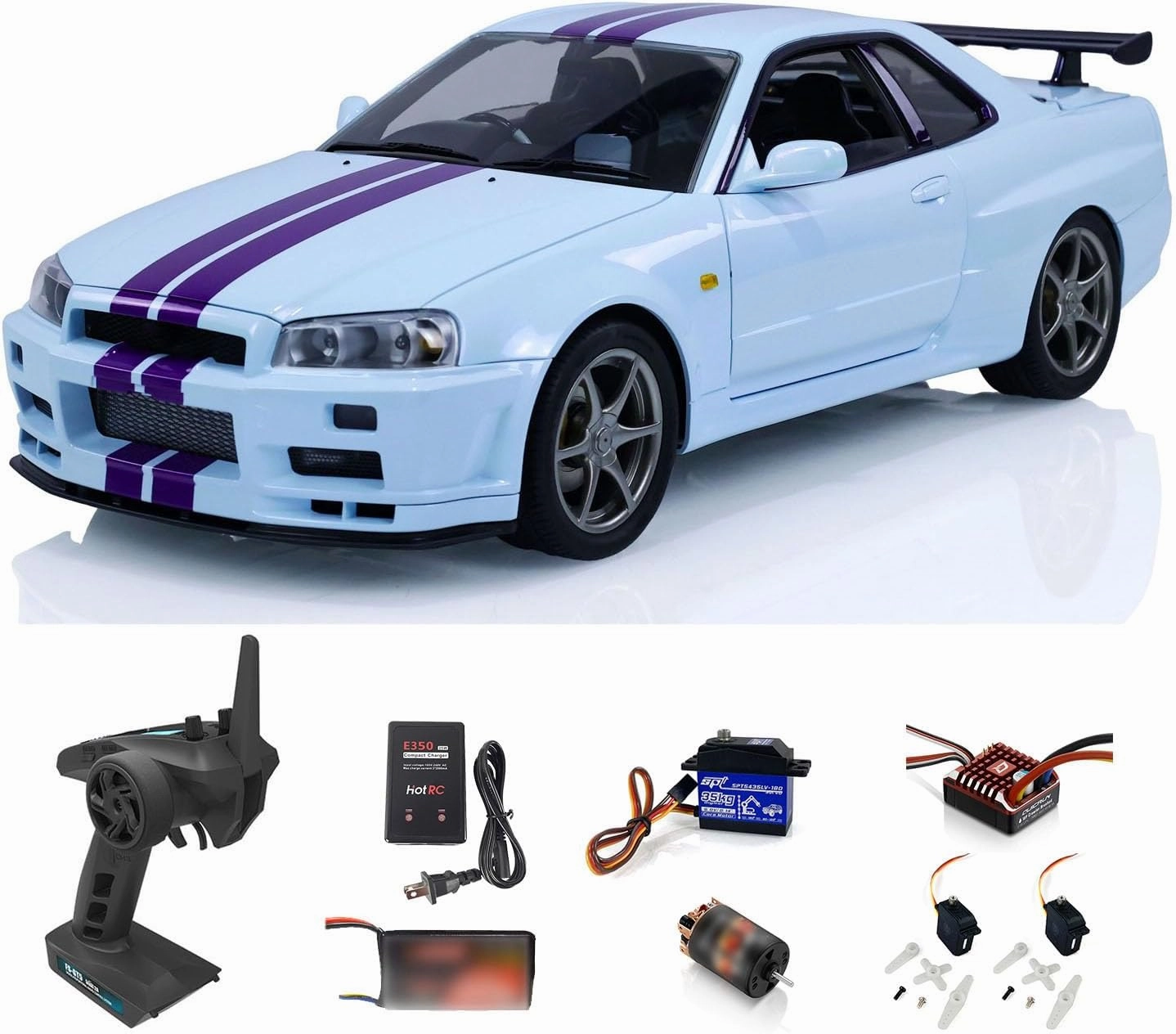

#This Package Includes:
1/8 R34 Rc Car Model
2-Speed Transmission
Motor: Hobbywing Quicrun Brushed 555-13T
Esc: Hobbywing Quicrun Brushed Wp 1080 80A G2
Servo：1X 35Kg Servo, 2 X 12G Servos
Light System
Flysky Gt5 Remote Controller And Receiver
Battery
Charger
#This Package Doesn'T Include:
Sound System
#About The Motor Hobbywing Quicrun Brushed 555-13T:
Brushed/Brushless: Brushed
Turns: 13T
[email protected]: 14000
Input Voltage: ≤12.6V
Slot: 5
O.D.(Mm): 36
Length (Mm): 58.5
Shaft Diameter (Mm): 3.175
Weight (G): 193G
#About The Esc Hobbywing Quicrun Brushed Wp 1080 80A G2:
Brushed/Brushless: Brushed
Waterproof: Waterproof
Cont./Peak Current: 80A/400A
Input Voltage: 2-3S Lipo
Bec Output： 6V/7.4V/8.4V @4A，6A Peak. （Note: 7.4V Voltage Can Be Output Only When Using 3S Lipo）
Input Wires: Black-14Awg-200Mm / Red-14Awg-200Mm
Output Wires: Yellow-14Awg-200Mm / Blue-14Awg-200Mm
Input Connectors: Xt60 Connectors
Output Connectors: 4.0Mm Bullet Connectors (Female)
Set Button On Esc: Supported
Led Program Box: Supported
Lcd G2 Program Box: Not Supported
Ota Programmer: Not Supported
Program Port: Separate Program Port
Firmware Upgrade: Not Supported
Size: 37.2X31.9X18.4Mm
Weight: 70.2G (W/Wires)
