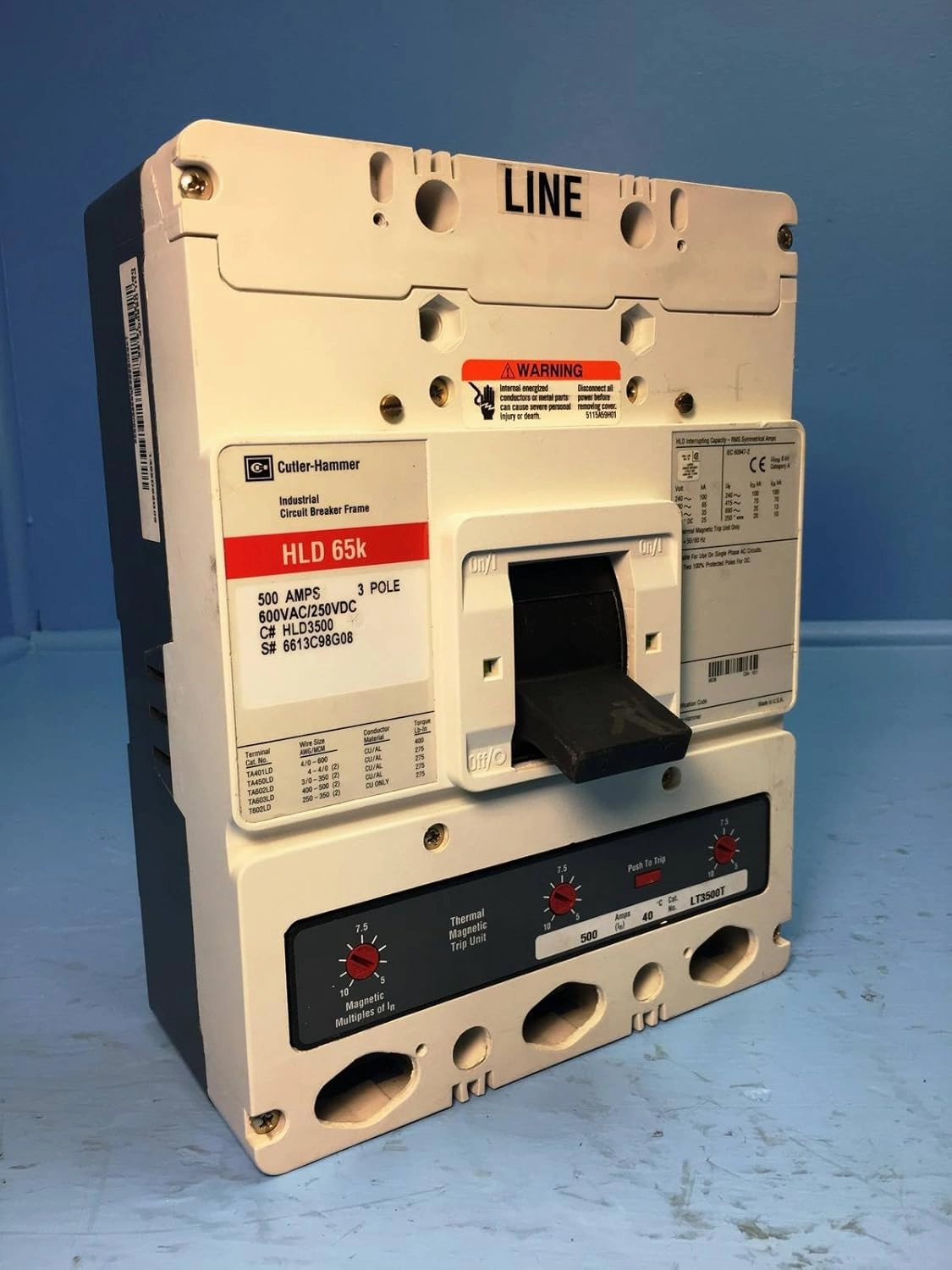

Cutler Hammer
Westinghouse / Eaton
Cat No. HLD3500

Industrial Circuit Breaker
500 Amps
HLD 65k

Includes set of bottom/load-side lugs
Includes lug terminal cover
Has a glossy white & red label

Style 6613C98G08

3 Pole
600 VAC / 250 VDC
50/60 Hz

Thermal-Magnetic Trip Unit:
500 Amps
Cat. No. LT3500T

HLD Interrupting Capacity RMS Symmetrical:
100,000 Amps @ 240 Volts AC
65,000 Amps @ 480 Volts AC
35,000 Amps @ 600 Volts AC
25,000 Amps @ 250 Volts DC


Breaker Weight: 18 lbs.
Breaker Dimensions (D x W x H): 4" x 8.25" x 10.75"
(add 2" to depth measurement for handle)

• Product Dimensions ‏ : ‎ 8 x 4.75 x 3.25 inches; 3.2 Pounds
• Date First Available ‏ : ‎ July 22, 2013
• Manufacturer ‏ : ‎ Cutler Hammer Westinghouse / Eaton
