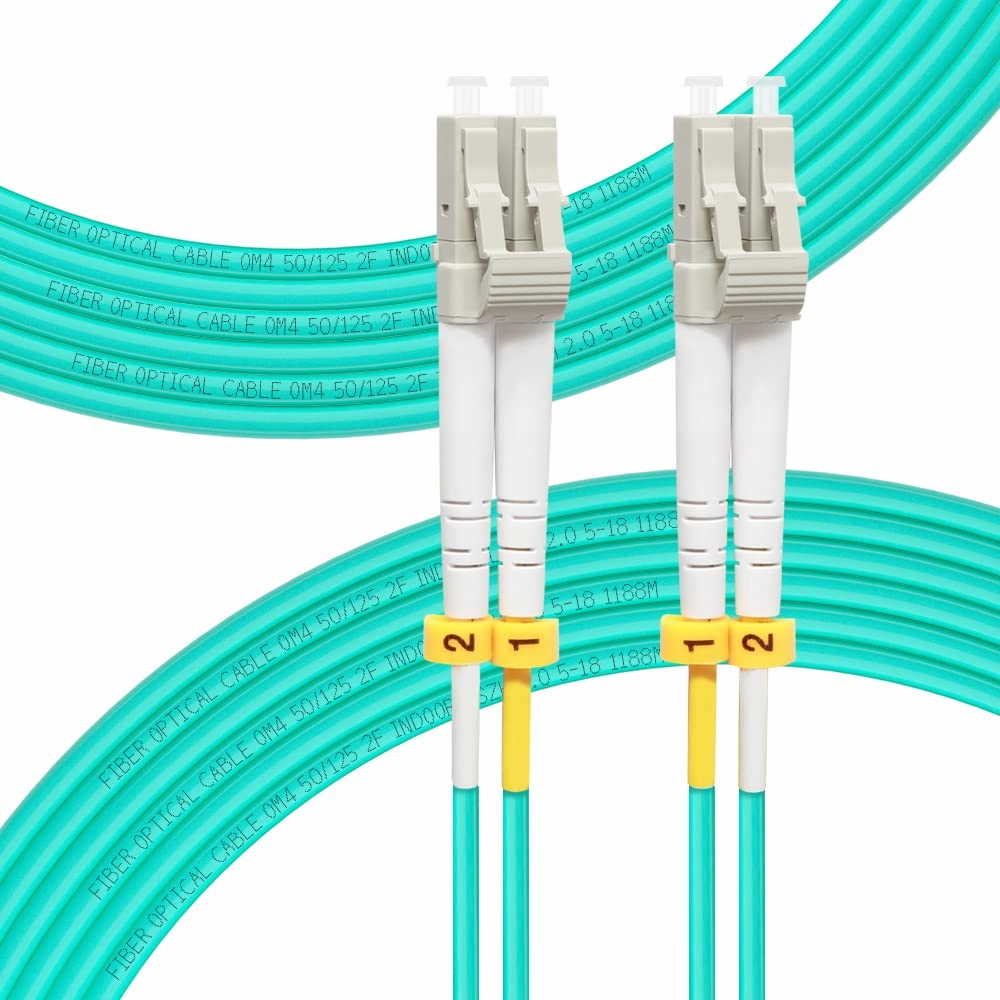

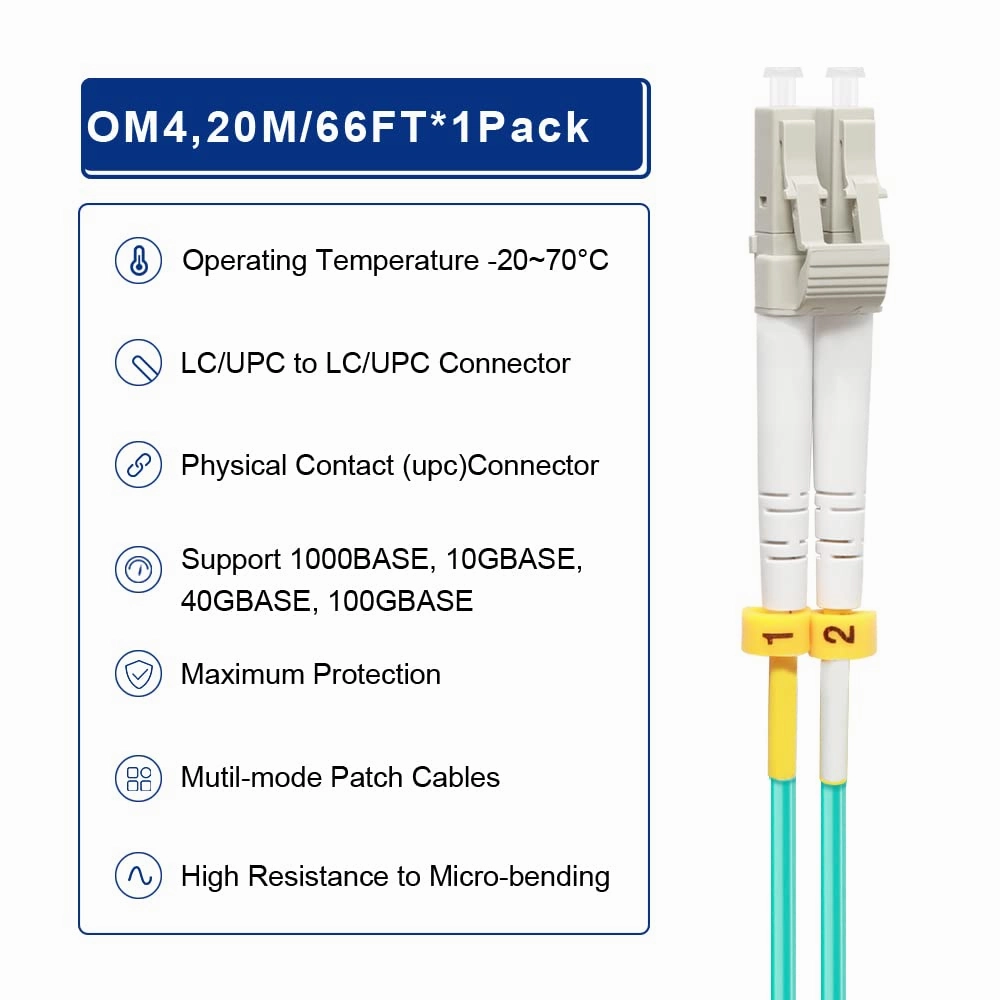

- 📡20M(66ft), OM4 LC-LC Fiber Optic Patch Cable Multimode 40/100Gb is designed for high density applications in gigabit ethernet, fiber channel, local area networks, data center, premise installation, wide area networks, commercial and so on, ideal for connecting 40G BIDI SR, 10G SR, QSFP , SFP transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.
- 📡Maximum Transmission Distance - 1Gb Ethernet Distance of 550Meters at 850nm; 10Gb Ethernet Distance of 300Meters at 850nm; 40Gb Ethernet Distance of 300Meters at 850/nm; 100Gb Ethernet Distance of 200Meters at 850nm. Bandwidth is 2000 MHz·km @850nm.

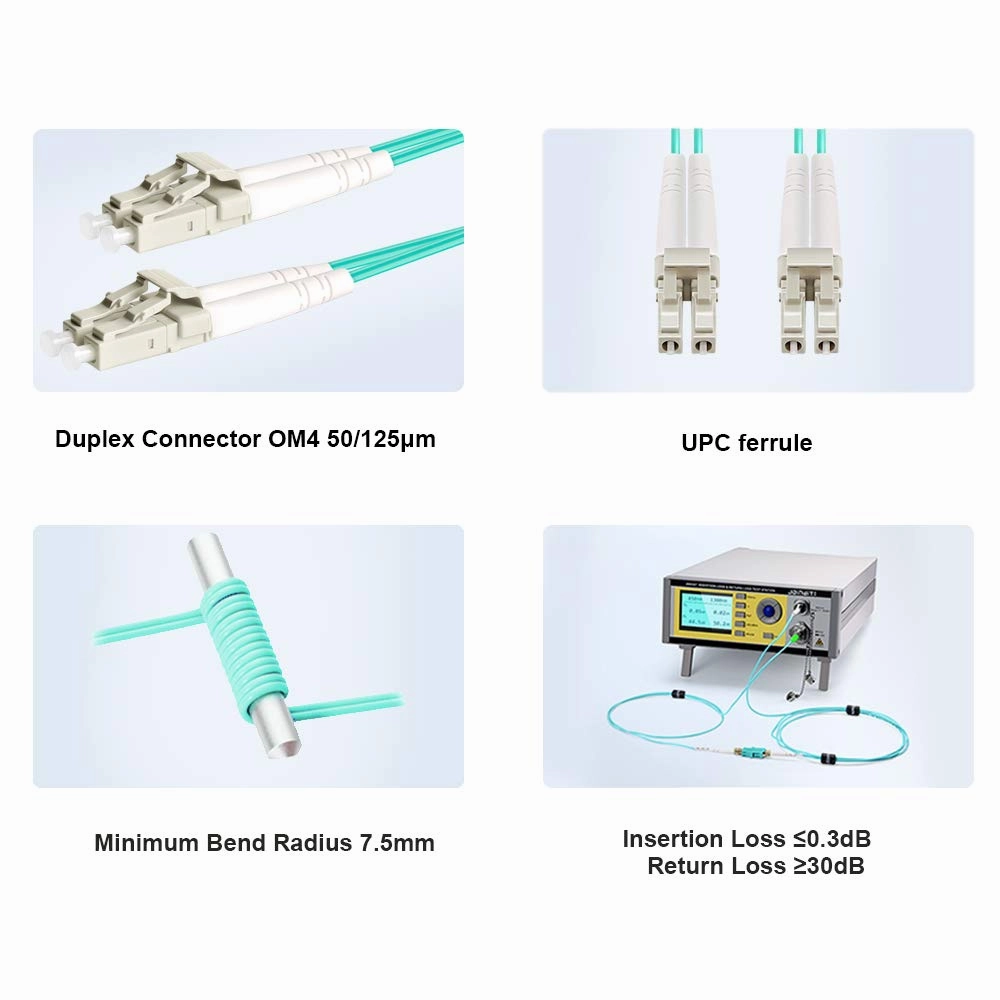

- 📡7.5mm Minimum Bend Radius - High Rated 50/125um Fiber and Cladding, which is Insensitive to bending, easy peeling, easy welding, ensures small optical loss and stable transmission (insertion loss≤0.3dB, return loss ≥30dB.), Ideal for SAN network cabinets that require 20 or more bends in the cabinet or high-density installations with cables crammed into an extremely small footprint.
- 📡Construction Design - LSZH environmentally friendly Jacket; Adjustable connector clips allow individual fiber access; Embossed A/B position labels on the duplex clip and jacket tag rings labeled 1 & 2 provide quick identification of Tx and Rx when installing, testing, and troubleshooting equipment connections; UPC polish and Japan made zirconia ceramic ferrules with high return loss, low insertion loss, and low attenuation features, provide precise alignment to ensure the signal integrity.
- FLYPROFiber has been focusing on fiber optics for 15 years. Each cable is tested in the factory to meet quality control and insertion loss requirements, providing customers with high-quality products. We also have a professional customer service team. If you have any questions, please contact us promptly.
