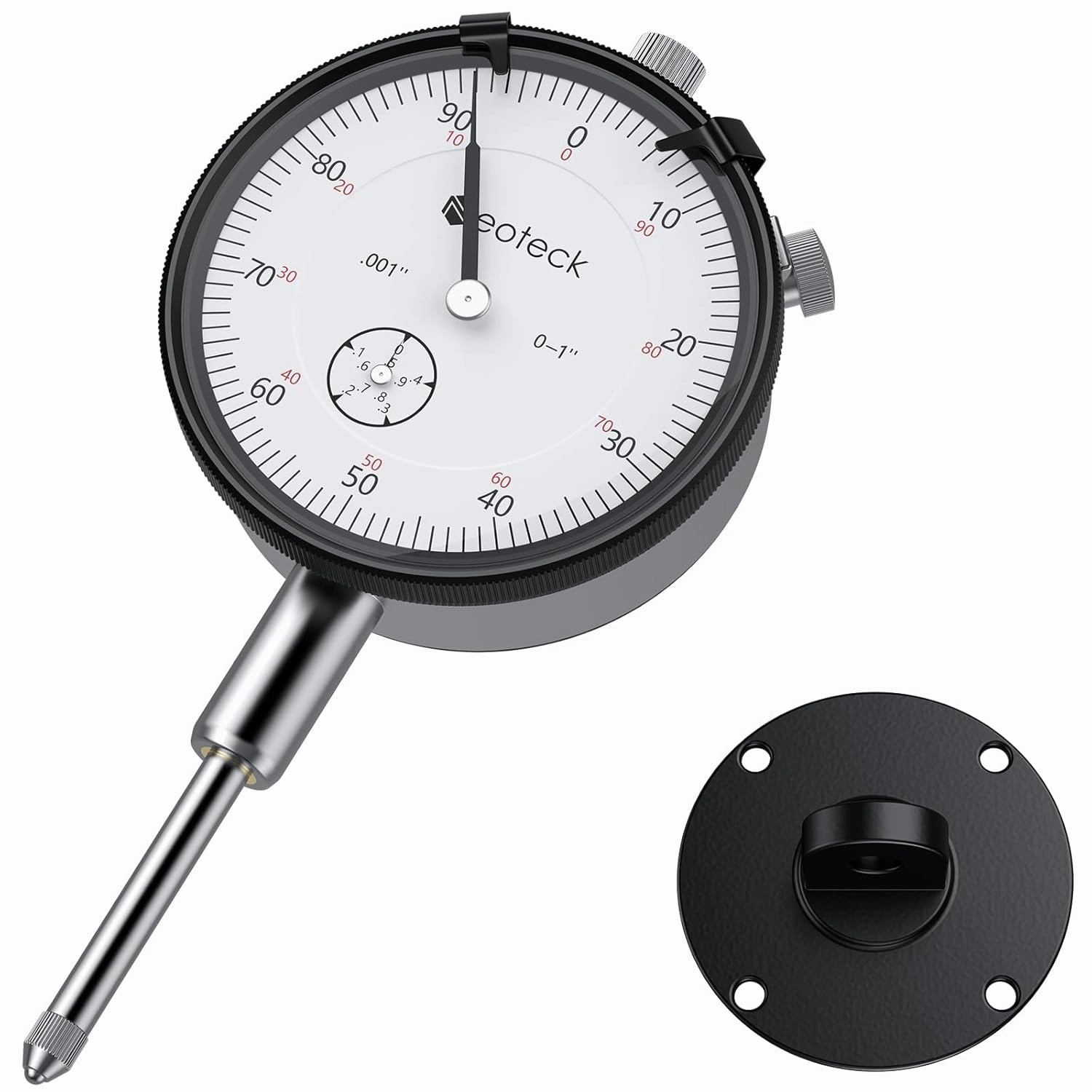

- 0-1"/0.001" High Precision Indicator：Neoteck dial indicator features a measuring range of 0-1" with 0.001" resolution for high accuracy and precise readings.And Each unit undergoes basic accuracy inspection to ensure reliable performance,which makes it an ideal precision measuring tool for professionals in engineering, automotive, metalworking and woodworking
- Full Metal Construction：Built with full metal construction,this indicator gauge is designed to offer long-lasting durability and built to withstand heavy workshop use.Besides,the precise internal transmission mechanism（brass insert for the main shaft/pin）and hardened stainless steel rack and M2.5 contact point ensues accurate and consistent performance
- 6.5mm Detachable Rear Cover:With a 6.5mm aperture rear cover attached, this 1 inch indicator is perfect for easy mounting on a range of machines.And there are dual mounting options for you to choice-flat base or rear cover included according to your measuring needs
- Wide Applications: Neoteck dial indicator is widely used in lathe,CNC machining and woodworking,etc.Besides,with 3/8 inch ( 9.52mm) diameter stem,it is can be operated with magnetic base,extended rod or brake caliper to finish work such as 3D printer bed leveling,CNC mill/CNC machine leveling,lathe alignment,table saw alignment and brake caliper alignment
- 4 Quick Steps for Measurements:Step 1:Secure indicator on a stable mount/workpiece with vertical tip contact. Press tip 2-3 times to eliminate play. Step 2: Lift/release cap to reset needle,loosen bezel clamp knob,align bezel to "0", then tighten. Step 3: Set tolerance via limit hands. Step 4: Press tip repeatedly—needle must return to 0.Once calibrated, start your measurements. Read deviations directly from the dial
- Package Dimensions : 6.77 x 3.35 x 2.44 inches; 7.05 ounces
- Date First Available : February 24, 2025
- Manufacturer : Neoteck
- Country of Origin : China
