- 【Remotely Lock and Unlock】 LOCK: Press the"Lock" button of remote once, parking light will flash once, siren sounds once, central door lock automatically. LED indicator flash once per second. (Default no siren no sound); UNLOCK: Press the "Unlock"button of remote, parking light will flash twice, siren sounds twice, central door unlock automati-cally, LED indicator will be closed.
- 【Car Search & Electronic Door Lock/Pneumatic Door Lock】 The main unit default electronic lock; Press"Bell"button of remote once, parking light will flash 30s, the siren sounds, press the same button again will stop; If no this button press lock button many times.
- 【Code Learning & Clear Code】 Press learning switch once, turning light flash once, after press remote any button, the code was learned, if need to learn more remote ,repeat it again; Press the learning switch 3 seconds turning light flash 3 time it was cleared.
- 【Power Window Output (-25s)】 Press" Lock " button once, turning lights flash once and door lock, now the power window signal output negative trigger 25s ,the function depend on the car circuit delay.
- 【Trunk Release(-3s,50mA)】Press the button "Unlock/ Trunk /Mute" on the remote transmitter 3 seconds to release the trunk while the parking lights will flash three times. it assisted by an actuator & a relay.
Features:
- Remotely lock and unlock your car.
- Direction light flashing.
- LED indicator.
- Remote car location.
- Remote trunk release.
- Rising power window.
Turning Light: 7.5 A x 2
Static Current: 8.5 mA
Working Frequency: 433.92MHz
Working Voltage: DC 12 /- 3V
Central Locking: 10A
Type Of Remote Control: Without LCD Remote Control
Type: Anti-Theft Device One-Way
Type Of Accessory: Alarm Key Mold
Remote Controlled: Yes
Feature: Remote Central Lock
Product Weight: 209 G / 7.37 Ounces
Product Dimensions (L*W*H) : 120*80*60 MM / 4.72*3.15*2.36 Inches
Package Weight: 209.0 G / 7.37 Ounces
Package Dimensions(L*W*H): 124*90*75 MM / 4.88*3.54*2.95 Inches
Installation:
- The car burglar alarms need installed by the professionals with car electrician certificated.
- For 12V DC car which have central door lock. The item without actuator of central door lock.
- Place of Application: 12V Car
Note:
- NO mute and locate function.
- (IMPORTANT) Professional Installation Is Highly Recommended.
- Please check the size measurement chart carefully before making payment.
- The color of the actual items may slightly different from the listing images due to different computer screen.

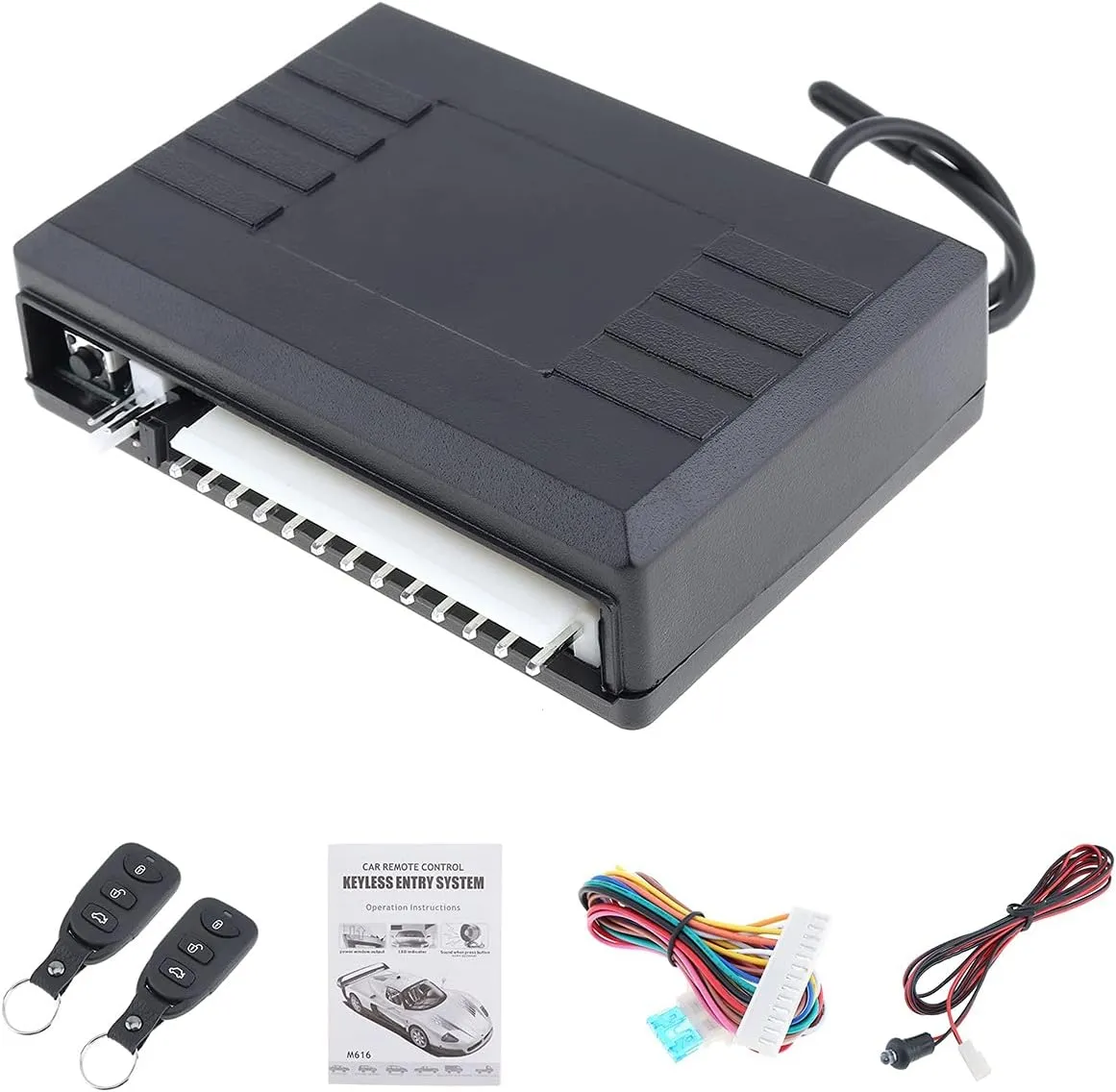

Package Include:
1 x Main Control Unit
2 x Remote Control
1 x Wiring Set
1 x LED Indicator
1 x English User Manual
- Product Dimensions : 4.72 x 3.15 x 2.36 inches; 7.37 ounces
- Date First Available : May 14, 2021
- Manufacturer : EPATHDEALS
