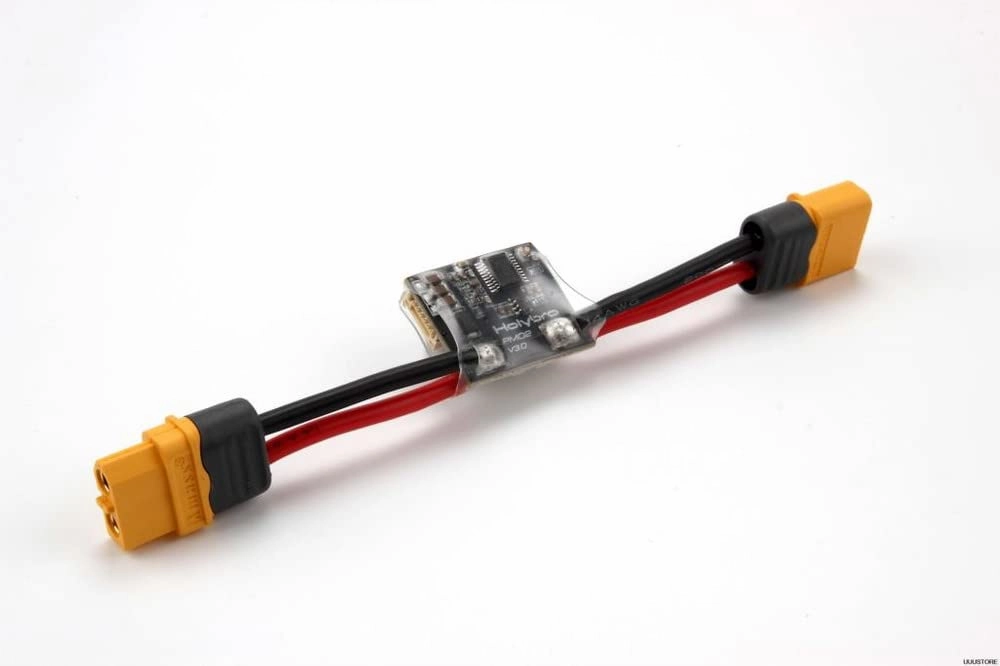

Upgrated Power Module PM02 V3 Supply XT60 Plug Fr APM PIX32 Pixhawk 4 Mini Flight Controller FPV RC Drone Features： - Max input voltage: 60V - Max current sensing: 120A - Voltage and current measurement configured for 5V ADC - Switching regulator outputs 5.2V and 3A max - 6-pos Molex cable plugs directly to APM/Pix32's 'PM' connector - 6-pos GH cable plugs directly to Pixhawk4/Pixhawk4 mini 'PM' connector PM02 is a simple way of providing your APM and Pix32 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from up to a 12S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection. The Power Module is designed to power APM,Pix32, a RC receiver and APM accessories (GPS, radio). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.The GH terminal is also compatible with both Pix32,Pixhawk4,Pixhawk4 mini and Durandal. Package Includes： - Power Module with XT60 Connectors Board - Molex 6 Position Connector 15 cm - GH 6 Position Connector 15 cm

• Date First Available ‏ : ‎ December 9, 2021
• Manufacturer ‏ : ‎ GalaxyElec
